Panel 19" 1U for 24 fixLink^® D* RJ45 socket modules

The 19" 1U distribution panel can be equipped with up to 24 fixLink^® D* RJ45 jack modules. The distribution panel can be ordered in either stainless steel or powder-coated sheet steel.
Earthing is provided by means of a 6.3 x 0.8 mm blade terminal.

Properties:

Installation dimension 19" 1U, depth 100mm for installation in 19" distribution rack
Front cut-out for 24 fixLink® D* jack modules, labeling 1-24
Rear cable clip, separate fastening for each cable via cable ties
Equipotential bonding via earthing cable incl. 6.3mm x 0.8mm blade receptacle
Housing material: powder-coated sheet steel grey RAL7035 or stainless steel
Materials in accordance with RoHS 2002/95/EC
Temperature range: -40°C to +70°C

Accessories:

Self-adhesive labeling strip for marking the ports, length 430mm
Screws and cage nuts, set for one panel

Description	Order code

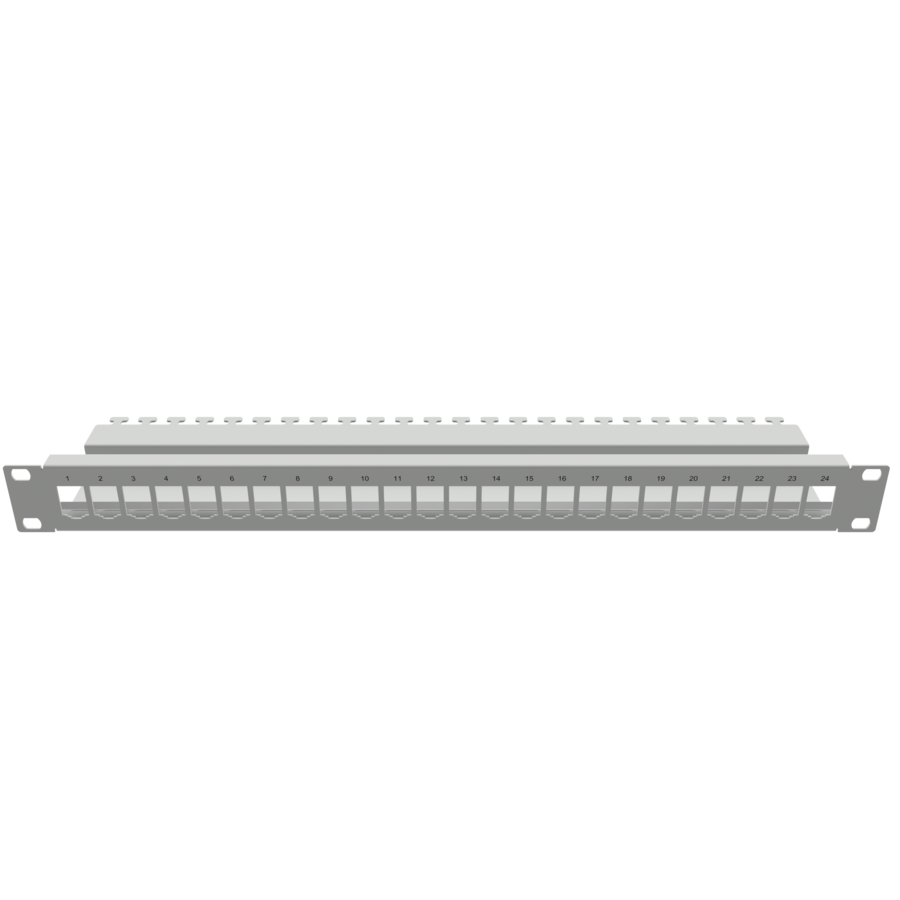

Panel, 19'', 1U, 24x fixLink^® D* RJ45 socket modules, RAL7035	CKVFD0124

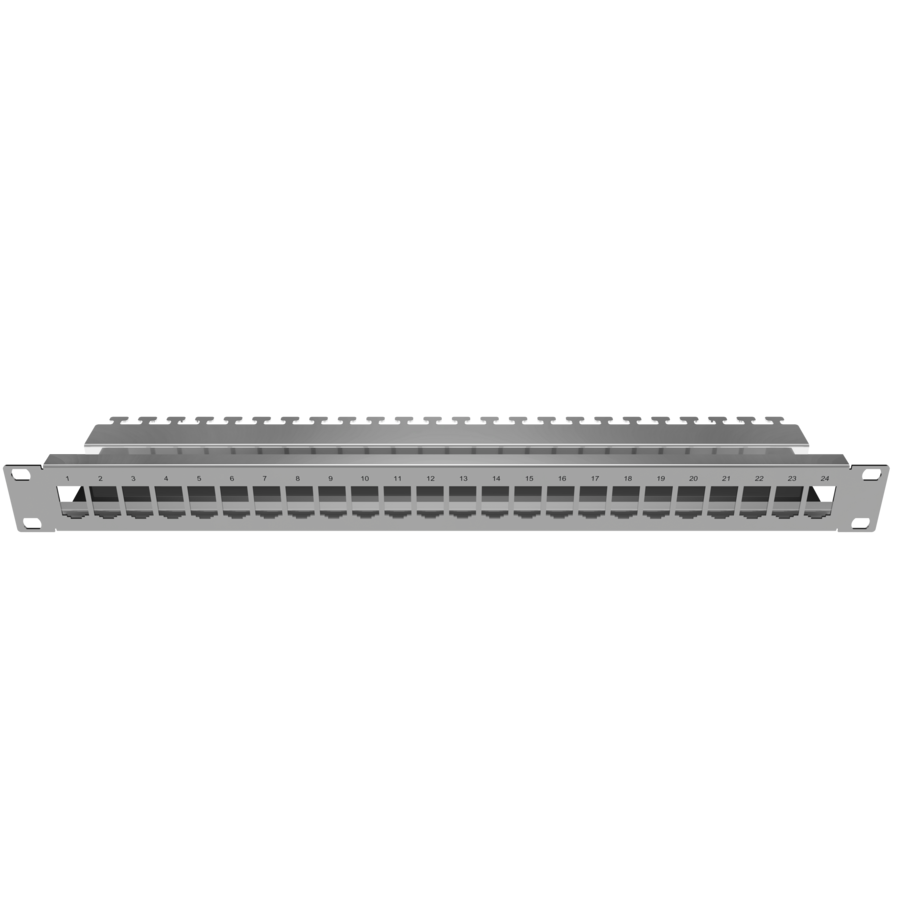

Panel, 19'', 1U, 24x fixLink^® D* RJ45 socket modules, stainless steel	CKVFD0124E
Self-adhesive labeling strip, length 430mm, PU 5 pcs.	AVZBTK430
Screws and cage nuts, set for one panel	AVZ4SUKM
