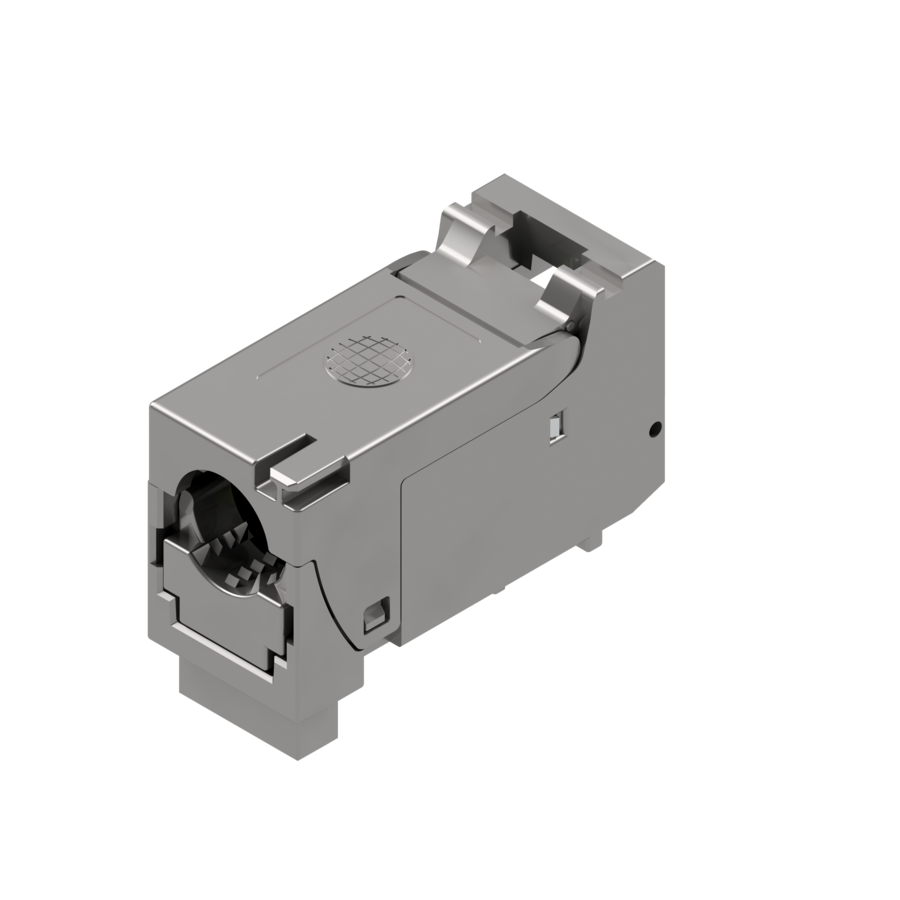

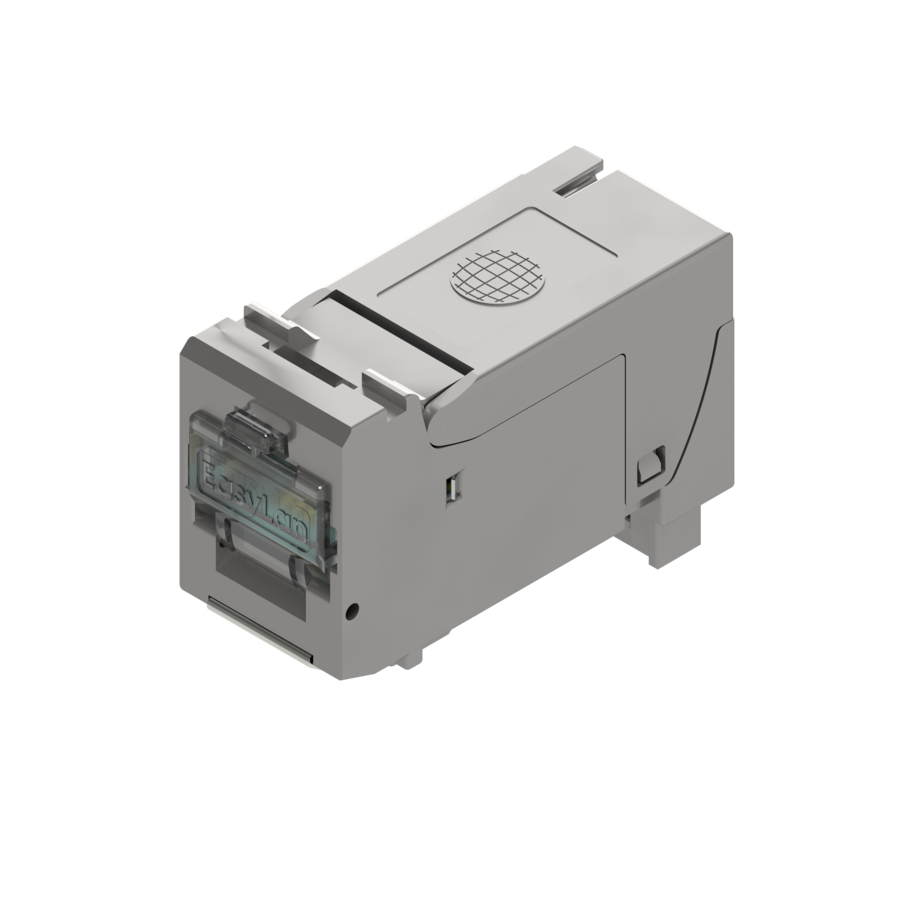

fixLink® D* RJ45 jack module Cat. 6A ISO/IEC, shielded
-
fixLink® D* RJ45 jack module Cat. 6A ISO/IEC, shielded

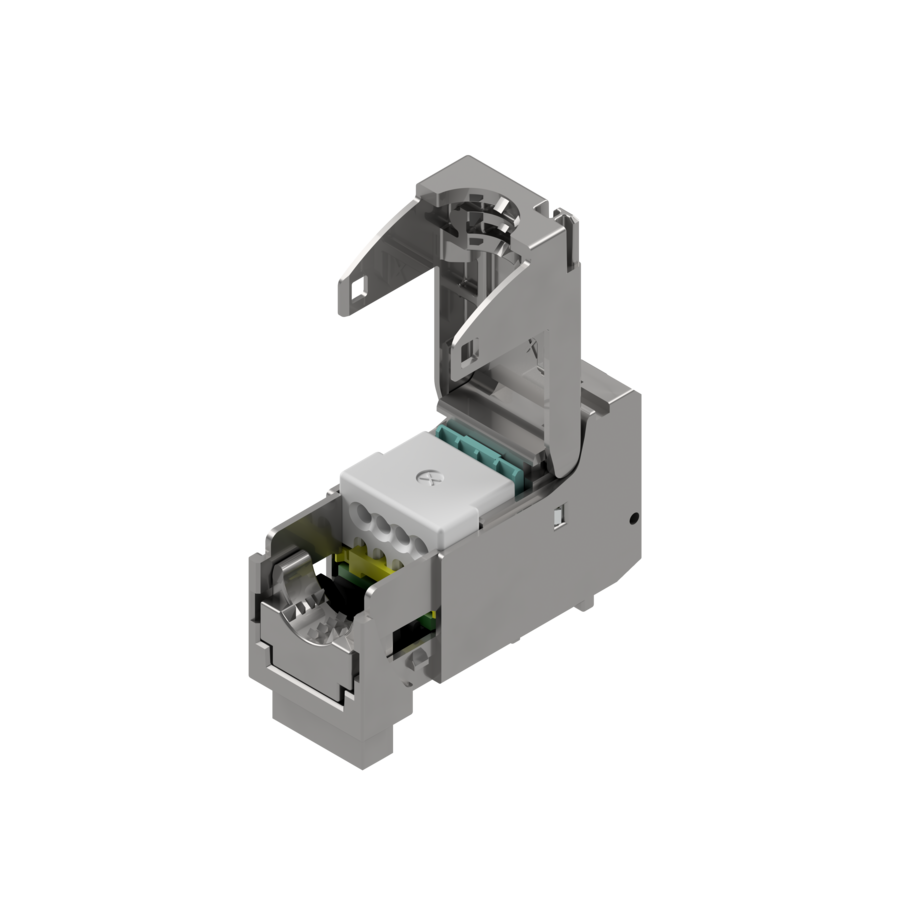

With the fixLink® D* RJ45 jack module, the user receives an RJ45 jack module of the highest quality. The fixLink® D* RJ45 jack module can be assembled in under a minute using a side cutter. The freely accessible contact zone ensures perfect assembly quality and thus reliable transmission performance. The integrated wedge is simply snapped into place for 360° shield removal, eliminating the time-consuming attachment of a cable tie. The special contact geometry in conjunction with a 30 μ inch gold plating ensures 4PPoE in accordance with IEEE 802.3bt under all conditions. The housing material consists of nickel-plated die-cast zinc and therefore meets the highest environmental and mechanical requirements. In conjunction with the design-capable module holder, it can be combined with all standard switch ranges. They are supplied in environmentally friendly cardboard packaging. The module can be ordered in the versions AWG 24-22 for installation cables and AWG 27-26 for flexible cables (patch cables).
Connector standard IEC 60603-7-51
Mechanical properties:
- Mating cycles ≥ 750
- Material Housing zinc die-cast nickel-plated
- Integrated dust cover made of plastic, transparent - interchangeable with other colors
- Gold plating in the contact area 30 µ inch
- Suitable for cable diameters 5-9 mm
- Tool-free wiring optionally in accordance with T568A and T568B
Environmental requirements:
- Connection class IP20
- Temperature range -40°C to +70°C
Electrical properties:
- Contact resistance ≤ 20 mΩ
- Insulation resistance between the contacts ≥ 500 MΩ
- Dielectric strength contact - contact 1000 V DC/AC peak
- Dielectric strength contact - shield 1500 V DC/AC peak
- Current carrying capacity at 50 °C 1.25 A
- Suitable for 4PPoE in accordance with IEEE 802.3bt
Transmission properties:
- Ideally suited for the transmission of 10 Gbit Ethernet (10GBASE-T) in accordance with IEEE802.3an and for applications up to 500 MHz in accordance with Cat. 6A and Class EA ISO/IEC 11 801 AMD1/2, DIN EN 50173-1, link length > 2m
Description
Order code
PU 24
Order code
Single packaging
fixLink® D* RJ45 jack module Cat. 6A ISO/IEC, shielded AWG 24-22 CKVKS012 CKVKS012EP fixLink® D* RJ45 jack module Cat. 6A ISO/IEC, shielded AWG 27-26 CKVKSE12 CKVKSE12EP Datasheet as PDF Download
fixLink® D* - System overview
Mounting Instruction as PDF Download
*Compatibility with E-DAT® modul (installation cut-out: module). E-DAT® is a registered trademark of Albert Metz GmbH & Co. KG
-
fixLink® RJ45 Plug Cat. 6A ISO/IEC shielded
-
Mounting - RJ45 fixLink® Plug
The fixLink® RJ45 connector module provides the user with an RJ45 connector of the highest quality and flexibility for the transmission of 10 Gbit Ethernet that can be assembled in the field. The module is suitable for AWG 26-22 data cables (straight cable feed) as well as for AWG 24-22 installation cables and AWG 26/7 flexible cables/patch cables. The connector module is shielded, rewireable and multi-port capable. It can be assembled in under a minute using side cutters. The freely accessible contact zone ensures perfect assembly quality and thus reliable transmission performance. The 360° shield removal is automatically ensured when the module is closed. The special contact geometry in conjunction with a 50 μ inch gold plating ensures 4PPoE in accordance with IEEE 80.3bt under all conditions. The housing material consists of nickel-plated die-cast zinc and fulfils the highest environmental and mechanical requirements.
Connector standard IEC 60603-7.Mechanical properties:
- Mating cycles ≥ 750
- Reconnectable/reclosable: 5x with the same wire diameter
- Material housing zinc die-cast nickel-plated
- Suitable for cable diameters 5-9 mm
- Tool-free wiring optionally according to T568A and T568B
Environmental requirements:
- Connection class IP20
- Temperature range -40°C to +70°C
Electrical properties:
- Contact resistance ≤ 20 mΩ
- Insulation resistance between the contacts ≥ 500 MΩ
- Dielectric strength contact - contact 1000 V DC/AC peak
- Dielectric strength contact - shield 1500 V DC/AC peak
- Current carrying capacity at 50 °C 1.25 A
- Suitable for 4PPoE according to IEEE 802.3bt
Transmission properties:
- Ideally suited for the transmission of 10 Gbit Ethernet (10GBASE-T) in accordance with IEEE 802.3an and for applications up to 500 MHz in accordance with Cat. 6A and Class EA ISO/IEC 11 801 AMD1/2, DIN EN 50173-1, link length > 5 m
Description
Order Code
Single packagingg
fixLink® RJ45 Plug Cat. 6A ISO/IEC shielded CKFFK001 Datasheet as PDF Download
fixLink® D*- system overview
Mounting Instruction as PDF Download
Download
*Compatibility with E-DAT® modul (installation cut-out: module). E-DAT® is a registered trademark of Albert Metz GmbH & Co. KG
-
fixLink® Extender Cat. 6A ISO/IEC shielded
-
EasyLan® fixLink Extender
With the fixLink® Extender, the user receives a cable connector of the highest quality and flexibility for the transmission of 10 Gbit Ethernet. This allows cables to be extended without much effort. Decommissioned cables can be reactivated and extended to the connection point. The space requirement is minimal and the limited space in the cable duct or distribution cabinet is optimally utilised. The extender is simply screwed into the trunking or onto the wall. Once installed, the extended cable can be used up to the maximum link length even for 10 Gigabit Ethernet transmissions and supports 4PPoE. The extender is shielded and can be reconnected. It can be assembled in under a minute per side using side cutters. The freely accessible contact zone ensures perfect assembly quality and thus reliable transmission performance. The housing material consists of nickel-plated die-cast zinc and fulfils the highest environmental and mechanical requirements. The extender is suitable for installation cables AWG 24-22 and flexible cables/patch cables AWG 27/1 (depending on the version, see table below).
Mechanical properties:
- Tool-free wiring optionally according to T568A and T568B
- Reconnectable: 5x with the same wire diameter
- Material housing zinc die-cast nickel-plated
- Suitable for cable diameters 5-9.5 mm
Environmental requirements:
- Connection class IP20
- Temperature range -40°C to +70°C
Electrical properties:
- Contact resistance ≤ 20 mΩ
- Insulation resistance between the contacts ≥ 500 MΩ
- Dielectric strength contact - contact 1000 V DC/AC peak
- Dielectric strength contact - shield 1500 V DC/AC peak
- Current carrying capacity at 50 °C 1.25 A
- Suitable for 4PPoE according to IEEE 802.3bt
Transmission properties:
- Ideally suited for the transmission of 10 Gbit Ethernet (10GBASE-T) in accordance with IEEE 802.3an and for applications up to 500 MHz in accordance with Cat. 6A and Class EA ISO/IEC 11 801 AMD1/2, DIN EN 50173-1, link length > 90 m
Description
Order code
Single packaging
fixLink® Extender Cat. 6A (ISO/IEC) for wire cross-sections AWG 24-22 CKEFFL00 fixLink® Extender Cat. 6A (ISO/IEC) Side A für AWG 24-22, Side B für AWG 27-26 CKEF00FL fixLink® Extender Cat. 6A (ISO/IEC) for wire cross-sections AWG 27-26 CKEFFLFL Datasheet as PDF Download
fixLink® D* - system overview
Mounting Instruction as PDF Download
*Compatibility with E-DAT® modul (installation cut-out: module). E-DAT® is a registered trademark of Albert Metz GmbH & Co. KG
-
fixLink® Tools and Accessories
-
Stripping Tool for Coat and Foil of Data Cable
Stripping tool to remove mantle of any cable or to strip off metallic foil from any data cable. Color: Blue. Packaging unit 1 pieceCopper strip
Copper adhesive tape to affix mesh screen. Pre-cut to 35mm x 9mm. Packaging unit bag of 20 pcs., roll with 1500 pcs.Dust Protection Caps
Colorful dust protection caps for preLink® SL and fixLink® SL Keystone module. Packaging unit: 50 pieces/polybagDescription
Order Code
Stripping Tool for Coat and Foil of Data Cable CZABIBL1 Copper strip bag with 20 pre-punched strips CZCUBT20 Copper strip roll with 1500 pre-punched strips CZCUBR15 Parallel crimping pliers CKZWZ003 preLink®/fixLink® Dust Protection Cap white (transparent) CKZMSKWS preLink®/fixLink® Dust Protection Cap blue (transparent) CKZMSKBL preLink®/fixLink® Dust Protection Cap green (transparent) CKZMSKGN preLink®/fixLink® Dust Protection Cap red (transparent) CKZMSKRD preLink®/fixLink® Dust Protection Cap yellow (transparent) CKZMSKYE fixLink® D* - system overview
