Consolidation Point Panel

Surface-mounted consolidation point panel for 4-12 fixLink® D* RJ45 jack modules

Surface-mounted consolidation point panel for 4-12 fixLink^® D* RJ45 jack modules

The surface-mounted consolidation point housing has 4-12 slots for the fixLink^® D* RJ45 jack module.
The housing can be used for installation in raised floors, false floors or as a surface-mounted or substructure housing. It can also be mounted on a top-hat rail using a top-hat rail mounting set.
Earthing is provided by means of a 6.3 x 0.8 mm blade terminal.

Properties:

Rear cable retention with separate fastening for each cable using cable ties
Material: powder-coated sheet steel, light grey RAL7035
Material thickness 1.5 mm
Materials in accordance with RoHS 2002/95/EC
Temperature range -40 °C ... +70 °C
Connection class IP20
Dimensions Surface-mounted CP housing for 4/6/8/12 Keystone modules: H 45, D 112, W 83/113/149/213 mm

Description	Order code
Surface-mounted consolidation point housing for 4x fixLink^® D* RJ45 jack module, RAL 7035	CKVPFD004E

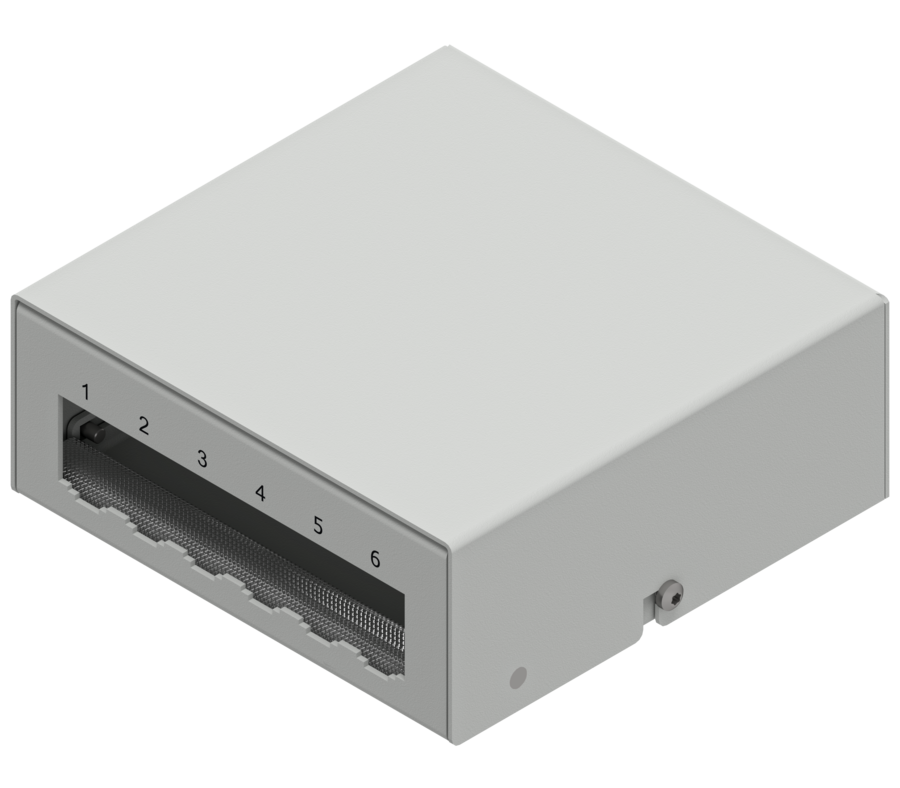

Surface-mounted consolidation point housing for 6x fixLink^® D* RJ45 jack module, RAL 7035	CKVPFD006E

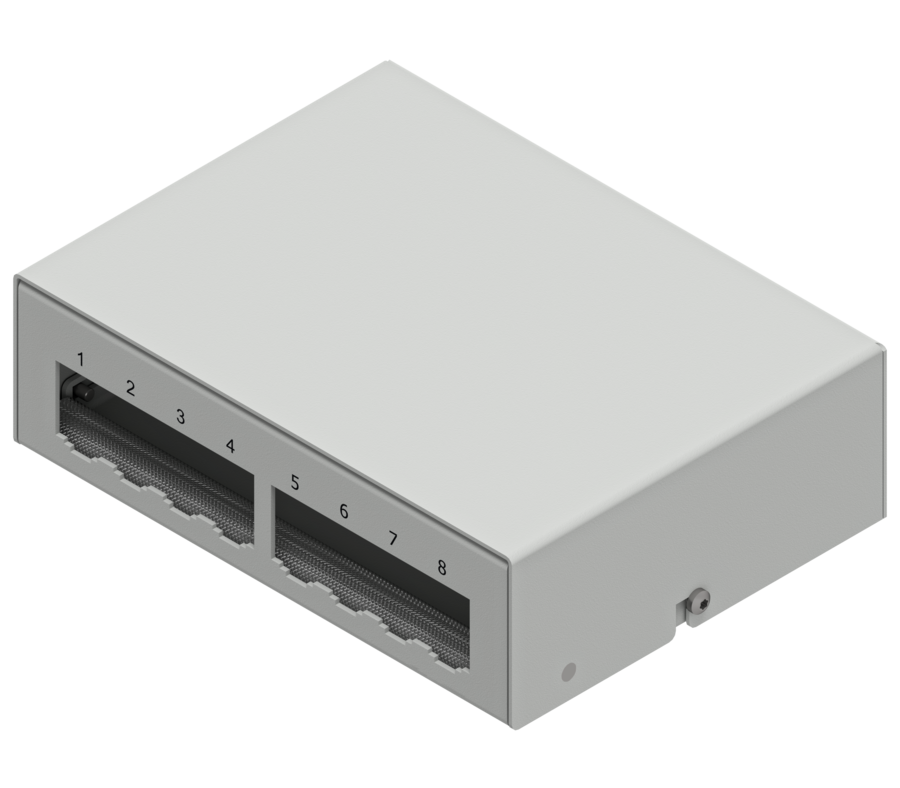

Surface-mounted consolidation point housing for 8x fixLink^® D* RJ45 jack module, RAL 7035	CKVPFD008E

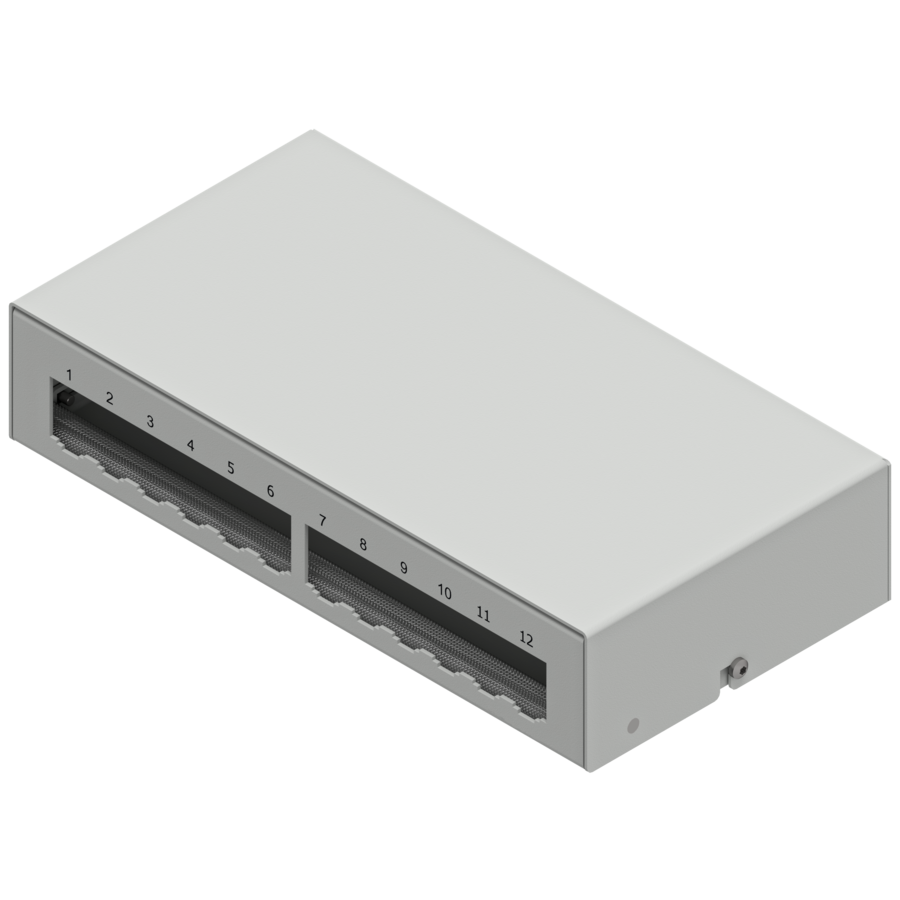

Surface-mounted consolidation point housing for 12x fixLink^® D* RJ45 jack module, RAL 7035	CKVPFD012E
Top-hat rail adapter set for surface-mounted CP enclosures	CKVHMEK
Self-adhesive labeling strip for CP housing 4x/8x, length 63 mm	AVZBTK063
Self-adhesive labeling strip for CP housing 6x/12x, length 95 mm	AVZBTK095
